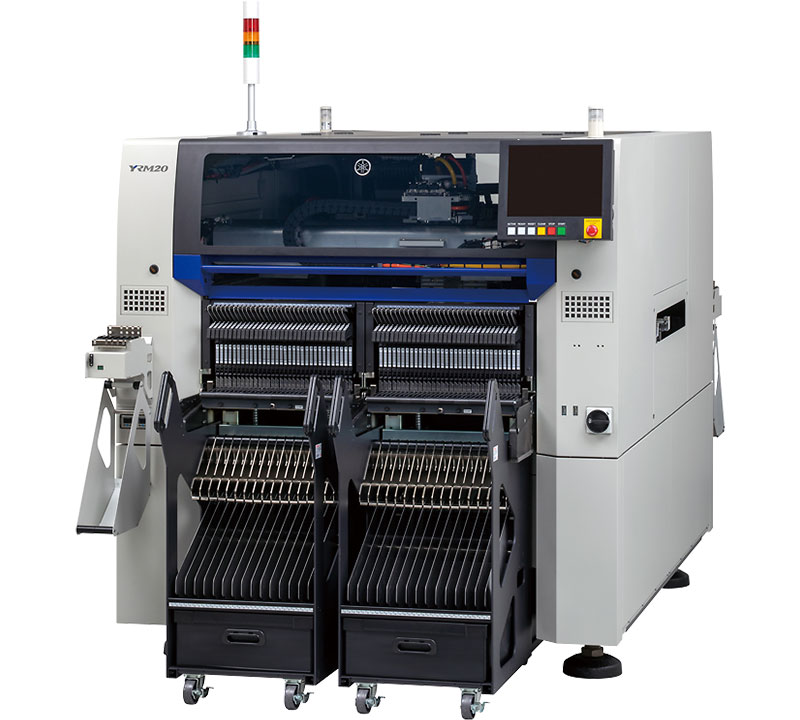

Dual Lane

• PCB Size SL : Max. L810 x W610mm DL : Max. L810 x W330mm
• Mounting capability RM head 120,000 CPH HM head 100,000 CPH FM head 35,000 CPH
• Accuracy(3∂) RM/HM : ±0.015mm Cpk≧1.0 FM : ±0.035mm Cpk≧1.0
• Component 0201~W55 x 100mm, T30mm

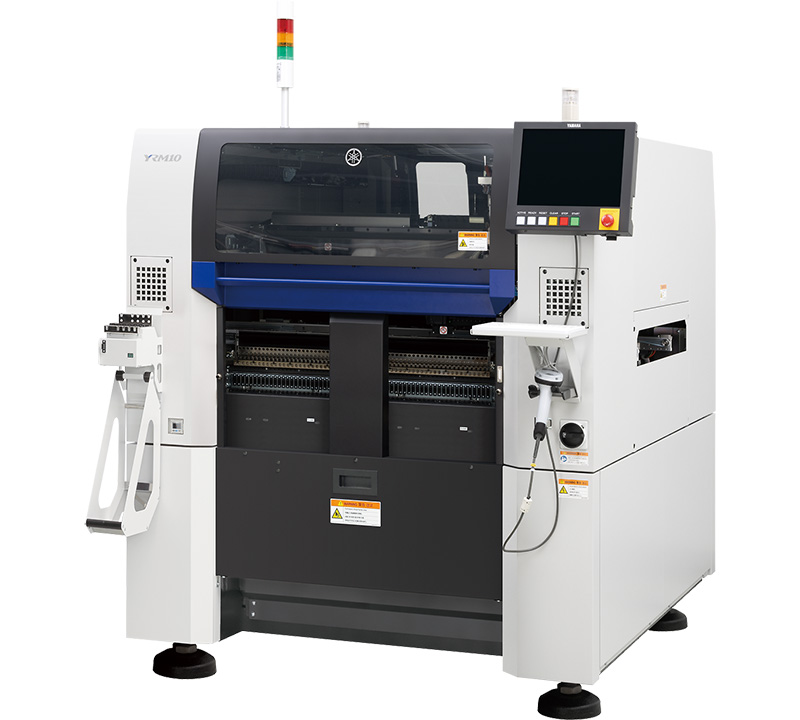

Single Lane

• PCB Size SL : Max. L810 x W510mm DS : Max. L380 x W510mm Option : L1,600mm
• Mounting capability RM head 115,000 CPH HM head 98,000 CPH FM head 35,000 CPH
• Accuracy(3∂) RM/HM : ±0.025mm Cpk≧1.0 FM : ±0.035mm Cpk≧1.0
• Component 0201~W55 x 100mm, T30mm

Single Lane

• PCB Size SL : Max. L510 x W460mm
• Mounting capability 52,000 CPH
• Accuracy (3∂) ±0.035mm Cpk≧1.0
• Component 0201~W55 x 100mm, T15mm
